• ENLARGEMENT WORKS OF THE COMMERCIAL CENTRE “DESPAR” IN MERANO (BZ)

  • Location:
    Merano (Bolzano) – Italy
  • Owner:
    Aspiag SpA – Mestrino (PD)
  • Customer:
    Sacaim SpA di Venezia (ditta esecutrice)
  • Developing period:
    2007
  • Works budget:
    € 5.300.000,00
  • Performance status:
    concluded
  • Performed activity:
    Construction design and technical assistance to the Property Developer, during construction stage of the structural works for the enlargement of the superstore.
  • Works:
    realized
  • Assignment commissioned to:
    Eng. Raffaele Fuser for Tre Erre Ingegneria Srl

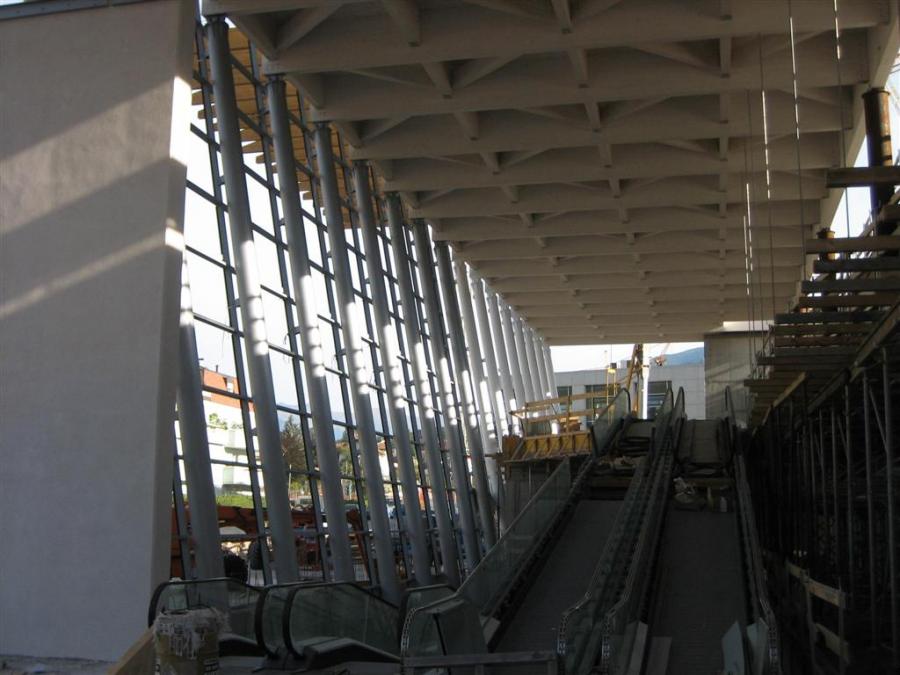

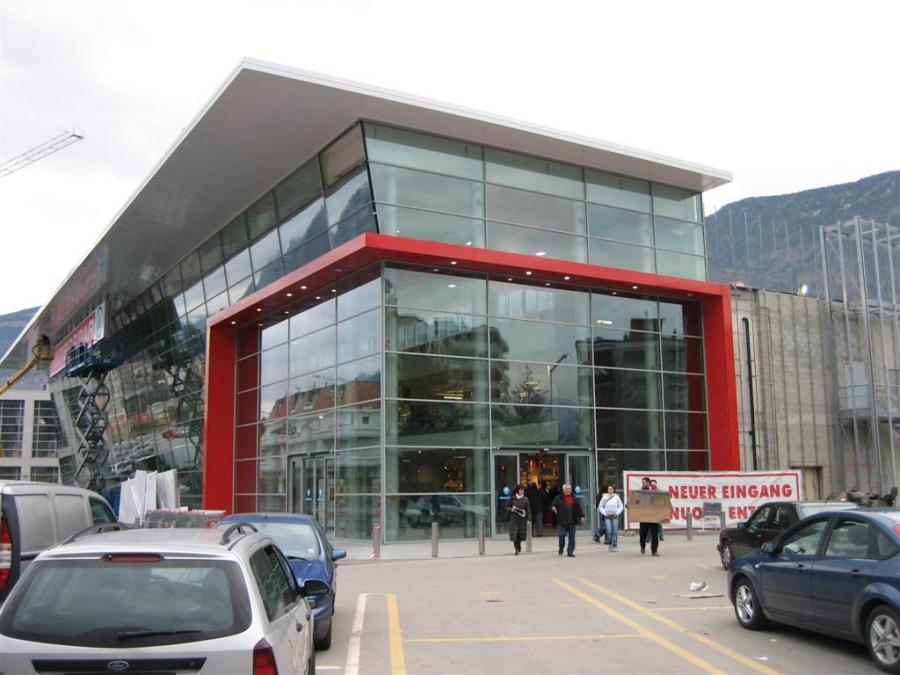

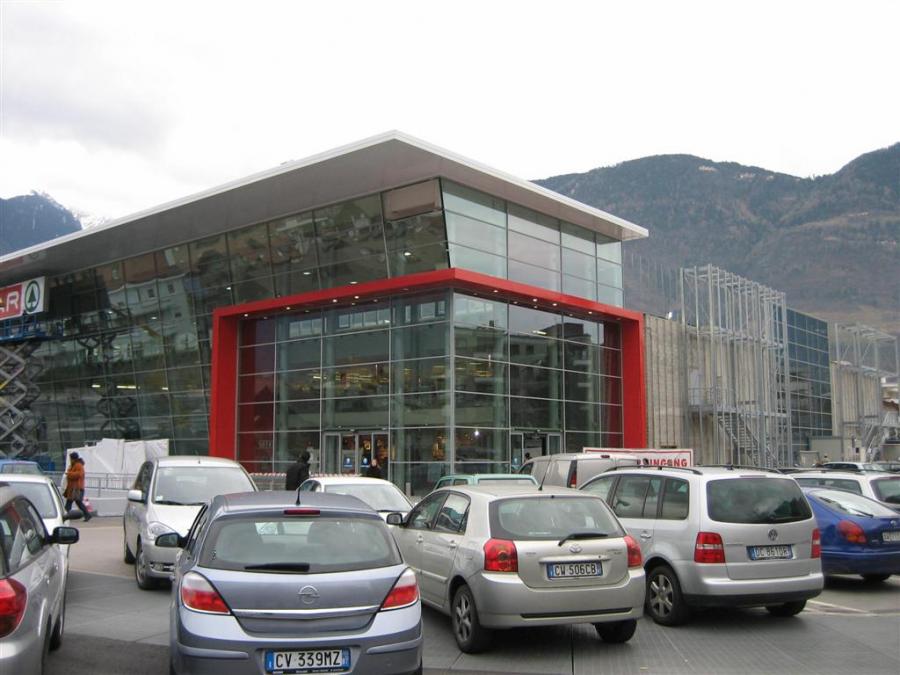

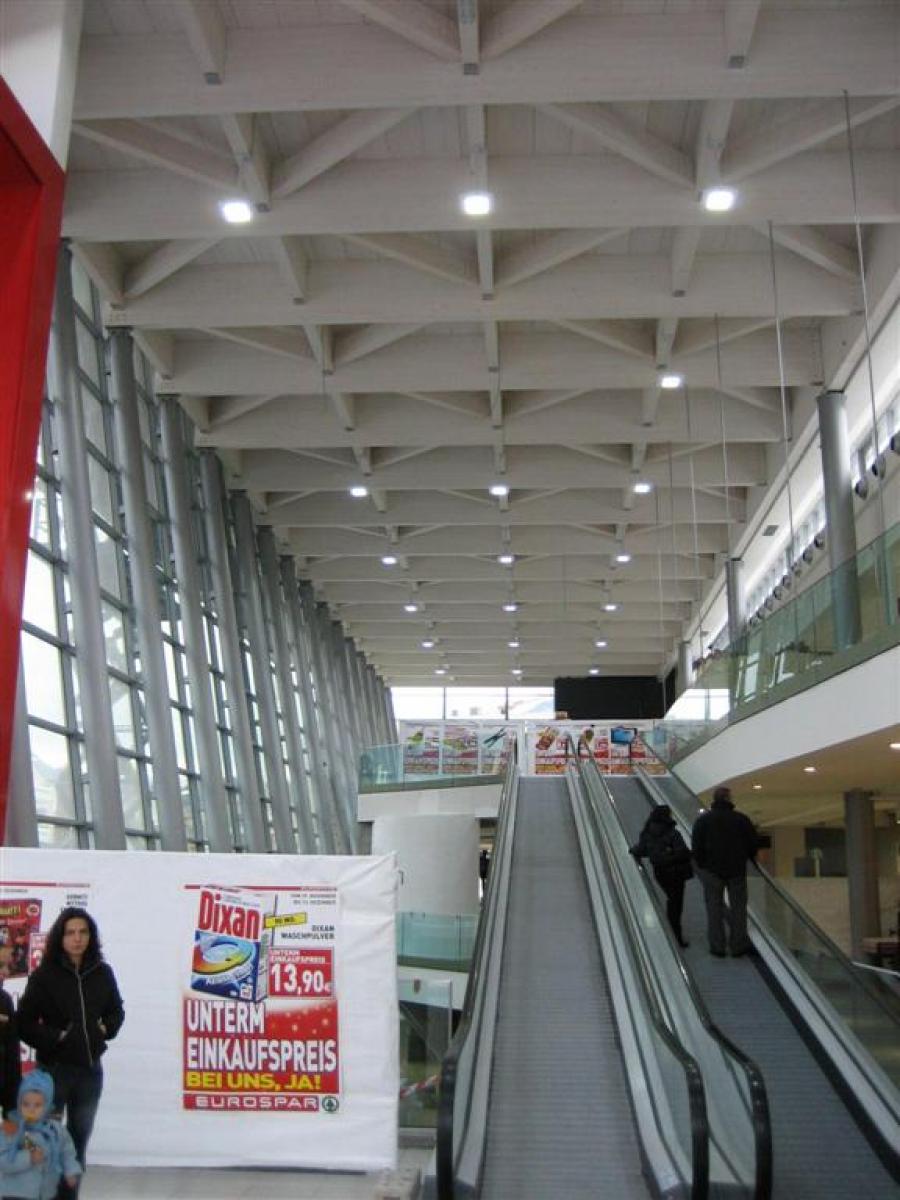

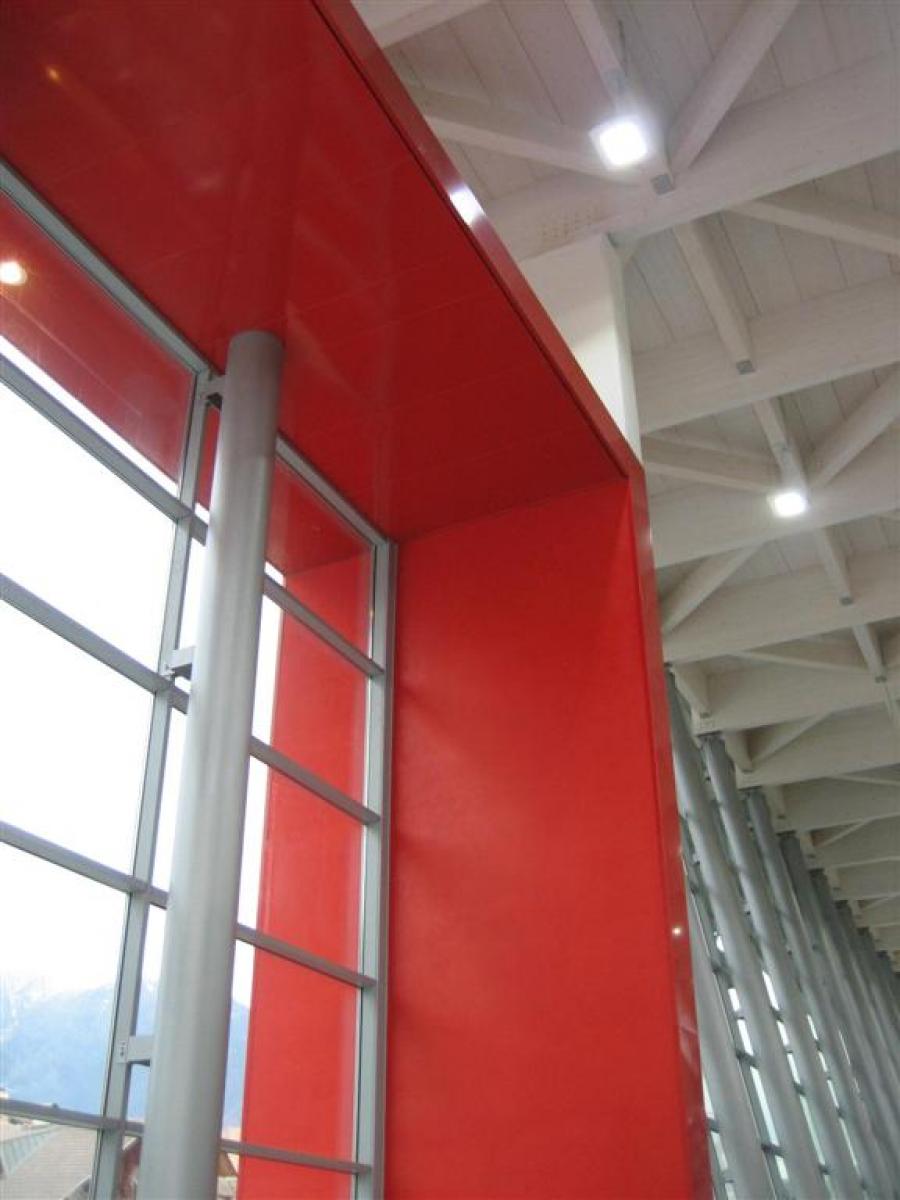

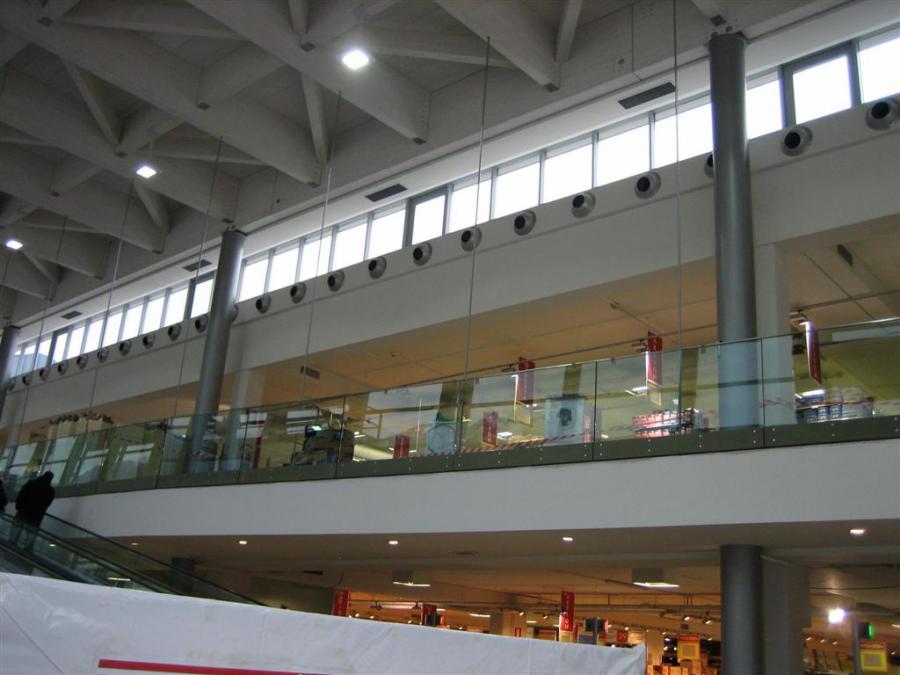

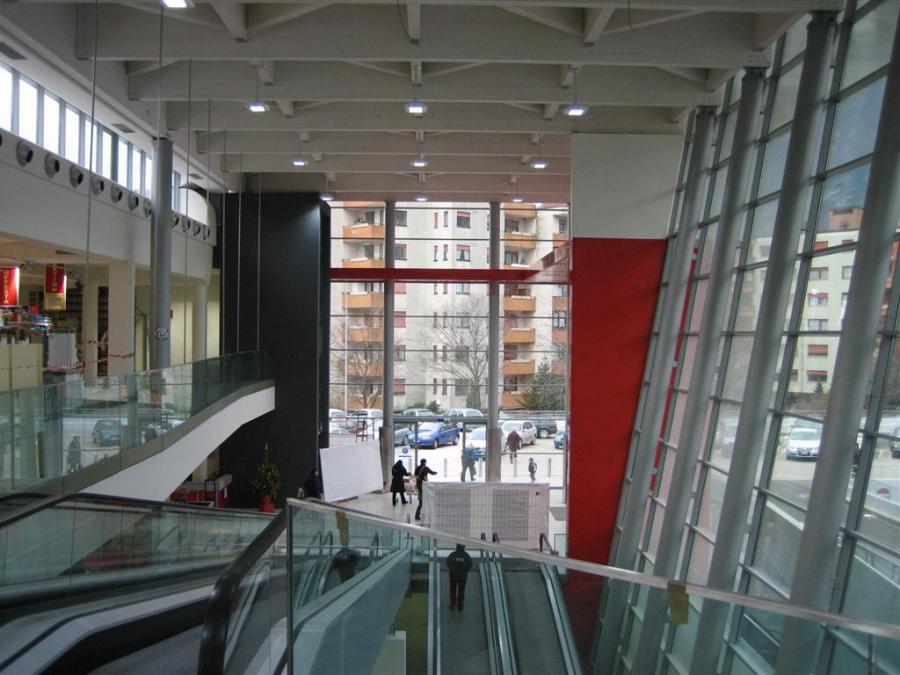

The enlargement works of Despar shopping center consist of a main part, which is the new facade on the west side of the building and underground parking, as well as other minor buildings such as construction of elevator shafts, stairwells and changes of the existing body.

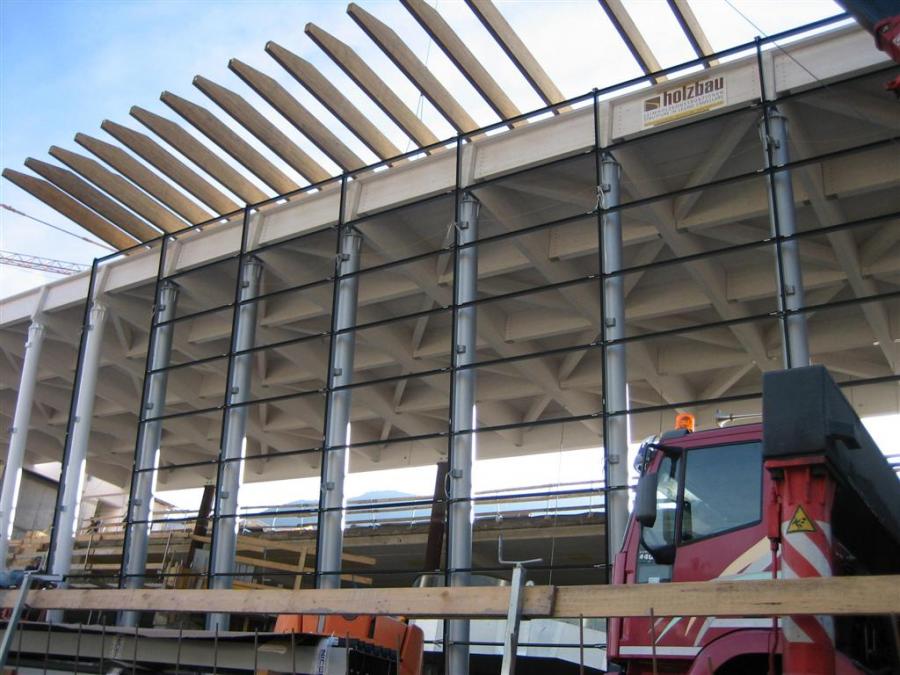

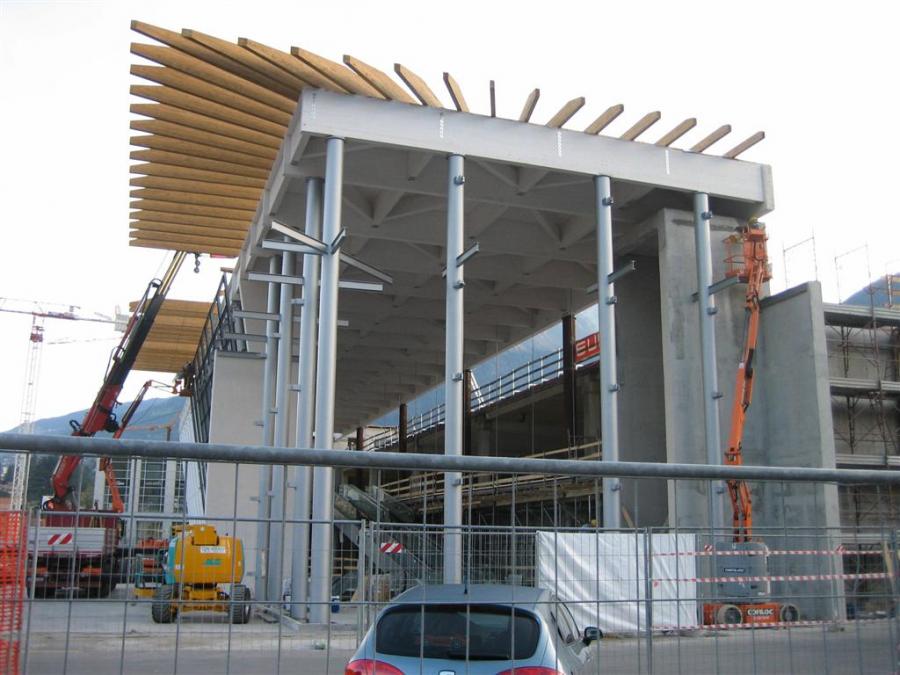

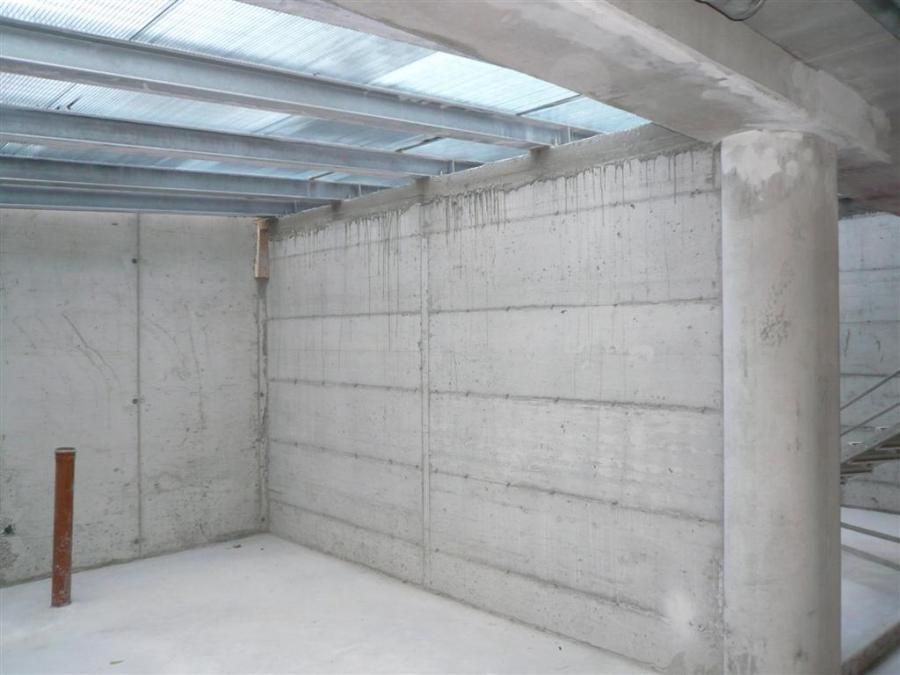

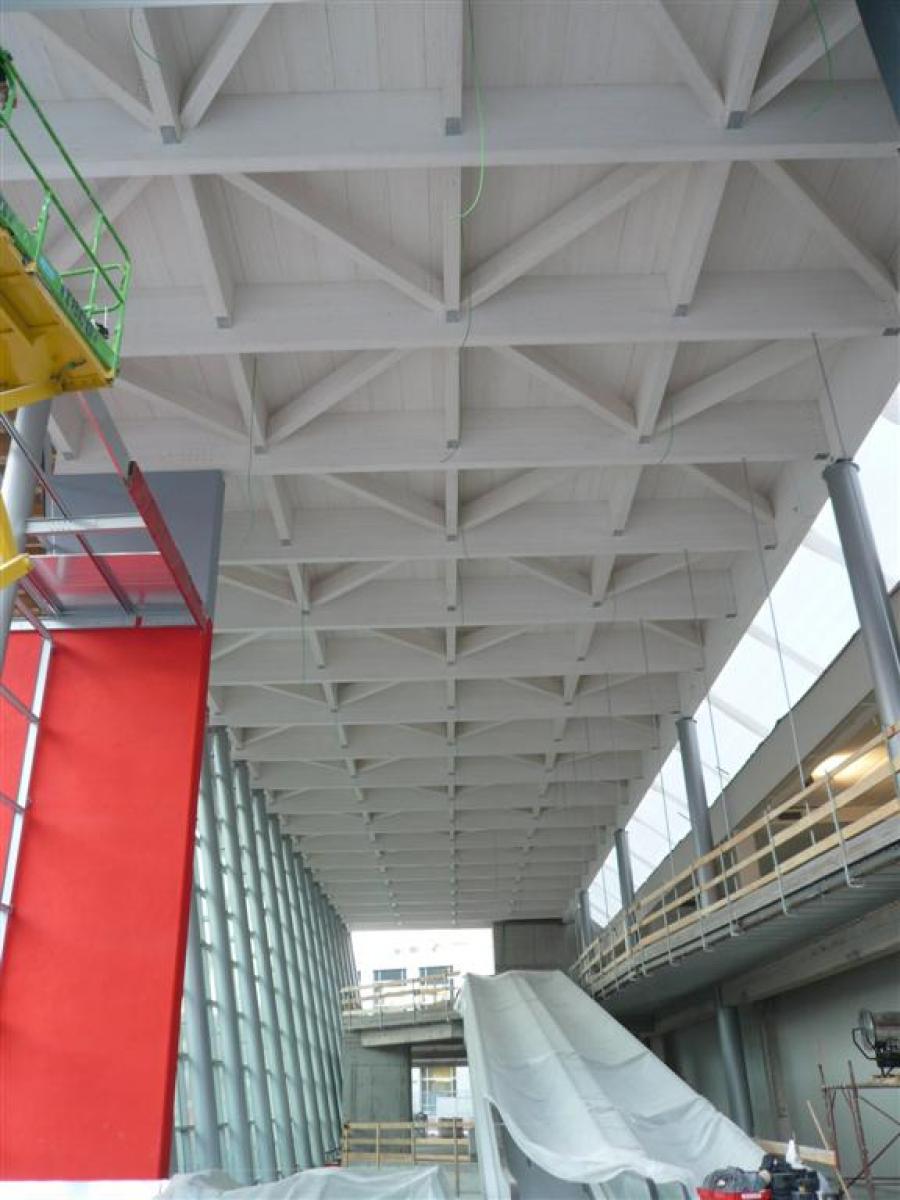

From the structural point of view the work was calculated according to the new seismic code O.P.C.M. 3274/03. The horizontal elements are of partial prefab components supplemented with additional castings in site; they have been realized with hollow core concrete slabs and REP beams, steel columns filled with concrete (PDT type) and cover produced by Holzbau Spa from Bressanone (Bz). As for the parts completely thrown in site, they can be summarized as: foundation bed, concrete walls and pillars
